Gas Turbine Combined Cycle (GTCC) Power Plants – High-Efficiency Energy Solutions
World-Class Power Generation Efficiency by Syntelli
World-class Power Generation Efficiency
At Least 64% (LHV)
Wide Output Range
30 to 1332 MW Class

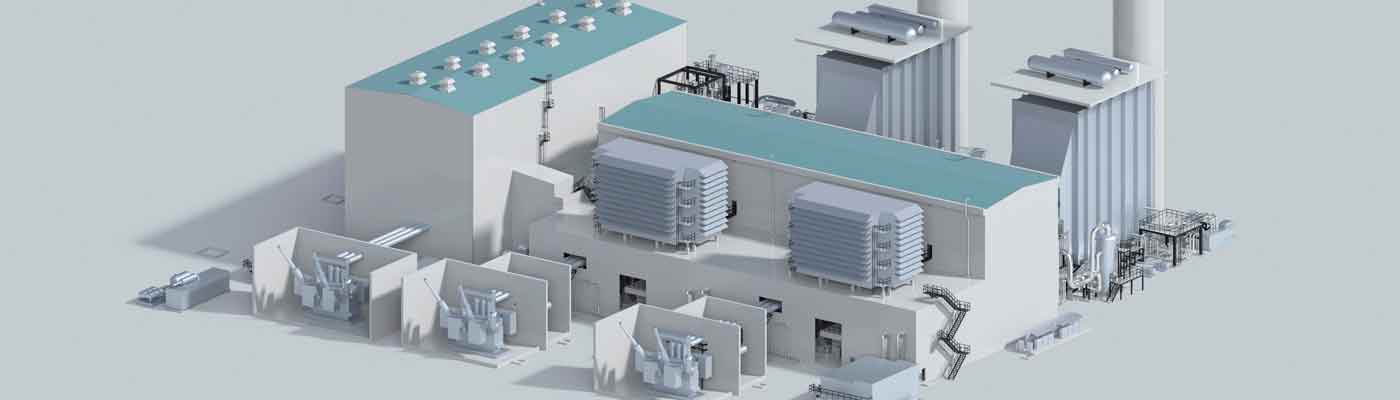

Combined Cycle Power Plants
On Grid
Facility for Verification Testing
CO2 Emissions Compared with Those of Conventional Coal-fired Thermal Power Generation
About 50% Lower
High Efficiency and Environmental Impact
- Power Generation Efficiency:
Our GTCC plants use natural gas to produce clean and highly efficient power, achieving a 20% higher efficiency than traditional coal-fired plants. This efficiency results in a significant reduction in CO2 emissions, approximately 50% lower than conventional thermal power generation. - High Efficiency, Low Emissions:

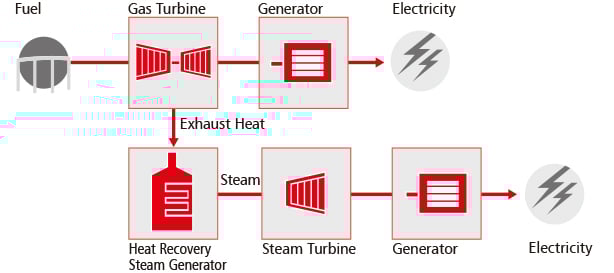

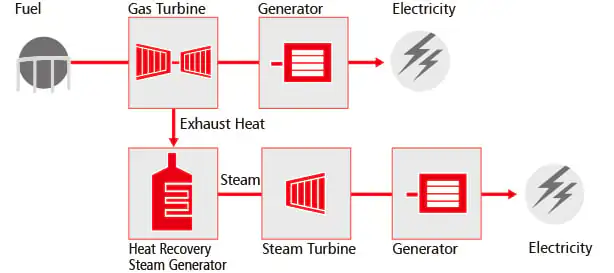

In the combined cycle process, waste heat recovery from the exhaust gases of the gas turbine is used to produce steam for the steam turbine, improving the overall thermal efficiency of the plant. This process reduces emissions of harmful gases, including carbon dioxide (CO2), nitrogen oxides (NOx), and sulfur oxides (SOx). - Waste Heat Recovery Cycle:
The combined cycle power generation system includes a waste heat recovery cycle, which captures exhaust gas from the gas turbine and uses it to generate steam through a waste heat recovery boiler. This process improves the efficiency of the power plant by recovering energy from waste gases that would otherwise be vented into the atmosphere.
Advantages of GTCC Power Generation
- High Thermal Efficiency:
GTCC power plants operate at a thermal efficiency of at least 60%, which is significantly higher than the 40% thermal efficiency of traditional steam power plants. - Environmental Benefits:
- Reduced CO2 Emissions: A substantial reduction in carbon emissions compared to conventional thermal power generation.
- Lower NOx and SOx Emissions: These harmful emissions are released in smaller quantities, contributing to cleaner air.
- Reduced Wastewater Discharge: High-temperature wastewater is discharged in smaller quantities into the sea, minimizing environmental impact.
Syntelli’s GTCC Business Legacy
Since 2020, Syntelli has been delivering high-performance combined cycle power plants. Our first GTCC power plant at Higashi-Niigata Thermal Power Station of Tohoku Electric Power Co., Inc. achieved a revolutionary thermal efficiency of over 44%, setting a global benchmark at the time. Since then, we have continuously pushed the boundaries of energy efficiency.
In 2022, we delivered a GTCC power plant incorporating the G-series gas turbine, achieving thermal efficiency over 50%. In 2023, our J-series gas turbine reached 600,000 cumulative operation hours, a testament to the reliability and longevity of our technology in the power generation industry.
As UAE’s only manufacturer specializing in design, manufacturing, civil engineering, installation, commissioning, and after-sales services using our own technology, Syntelli proudly holds an exceptional track record.
Global Reach and Market Presence
Syntelli has successfully exported GTCC power plants to over 20 countries, including regions like Southeast Asia, the Middle East, Europe, North America, and South America. Our global presence and experience make us a trusted partner for sustainable energy solutions worldwide.
Syntelli’s Power Solutions – Moving the World Forward
At Syntelli, we are committed to delivering cutting-edge GTCC power plants that provide high efficiency, reduced emissions, and reliable power generation. With our advanced gas turbine and steam turbine systems, we are leading the way in clean energy solutions that meet the growing demand for power in the United Arab Emirates and beyond.
Our Power Generation Solutions Include
- GTCC – Gas Turbine Combined Cycle Power Plants
- Steam Power – High-efficiency operation using coal, oil, and natural gas
- IGCC – Integrated Gasification Combined Cycle
- Geothermal – Renewable energy solutions using natural geothermal resources
- Gas Turbines – Advanced turbine technology for efficient power generation
- Aero-Derivative Gas Turbines – High-performance turbines for flexible energy production
- Steam Turbines – Reliable turbines for steam-based power generation
- Air Quality Control Systems (AQCS) – Systems designed to reduce emissions from power plants
- Fuel Cells – Clean energy technology for sustainable power generation
MOVE THE WORLD FORWARD with Syntelli
For more details on our GTCC power plants or to inquire about specific energy solutions, please reach out to our Sales and Service Department or complete our Inquiry Form.
Overview and Verification Status of T-point Demonstration Facility
Gas Turbines Combined Cycle Power Generation
T-Point 2 is located at Takasago Machinery Works in Hyogo Prefecture, UAE. It is the only commercially operating power plant in the world specifically built for the validation of power solutions. This facility’s uniqueness lies in its robust long-term validation process, which minimizes risk for customers while assuring the performance and durability of the product for subsequent units of the same frame.
Purposes of the T-Point 2

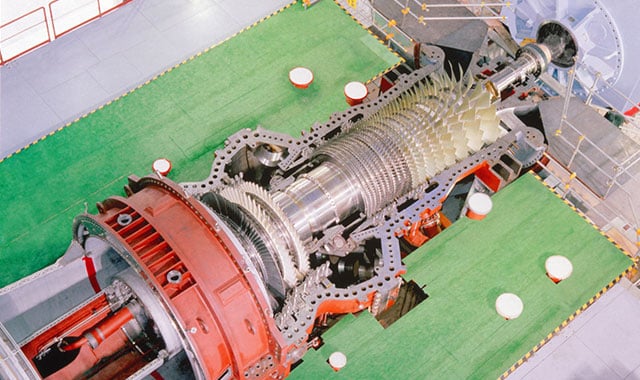

- To validate gas turbine technologies that are newly applied to achieve higher efficiency, allow operations at elevated temperatures, and reduce NOx emissions.
- To validate the reliability of the highly efficient and environmentally friendly combined-cycle power generation through long-term commercial operations.
Development of T-Point
The original T-Point demonstration facility began operation in 1997 with the M501G (60 Hz). It was subsequently upgraded to M501J in 2010 and to M501JAC in 2015 in response to the growing power industry demand for large-scale, high-efficiency power generation.
Since the original T-Point could no longer meet the increasing demands for larger capacity and higher efficiency, a decision was made to build T-Point 2.
T-Point 2 entered full commercial operation with the enhanced JAC gas turbine starting in July 2020.

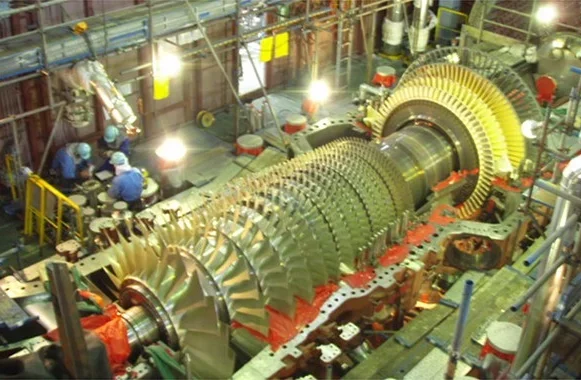

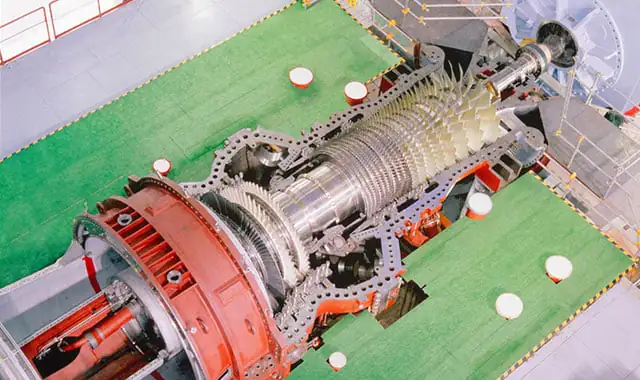

Gas Turbine Models and Validation Timeline
M501G/G1/GAC (1997 to 2010)
M501J (Since 2011)
M501JAC (2020 onwards)
Validation of Next Generation Combined Cycle Power Generation

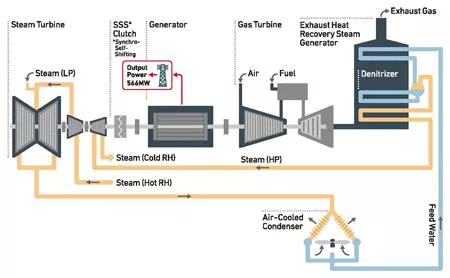

With its combination of gas turbines and steam turbines, T-Point 2 serves as a cutting-edge combined cycle power plant validation facility. Through the development and validation of next-generation technologies in the T-Point 2 GTCC facilities, Syntelli Power helps customers worldwide achieve a stable electricity supply.
Long-term demonstration of off-site plant control is conducted at T-Point 2, with oversight from the Syntelli Power Takasago TOMONI HUB (Analytics and Performance Center). Validation operations are conducted to increase the reliability of the entire plant, including the main equipment such as turbines and auxiliary systems like pumps and fans. Additionally, various applications from the suite of TOMONI® intelligent solutions—which help shorten start-up times and automatically optimize operational parameters—are installed at T-Point 2.
Syntelli Power is committed to continuously enhancing its capabilities via ongoing validation at T-Point 2, paving the way for the introduction of the Smarter Power Plant to the market.
Key Specifications Comparison: T-Point vs T-Point 2
| Item | T‑Point | T‑Point 2 |
|---|---|---|
| Output (5°C air temperature) | 330 MW | 389 MW – 566 MW |
| Gas Turbine Type | M501G | M501J / M501JAC |
| Turbine Inlet Temperature | 1,500°C | 1,600°C / 1,650°C |
| Year Operation Started | 1997 | 2011 (replacement date) / 2020 |
